CAD Fusion

优势和特点:Integratingdesignandanalysis设计和分析的整合Accuracy精确Moreaccuratemodellingandpositioningofcomponents零部件建模和定位更准确Collaborative协同Create,updateandsharedetailedmodelsquicklyandeasily快速便捷创建、更新和分享模型细节。

详细信息


1

一、优势和特点

        Integrating design and analysis设计和分析的整合

        Accuracy精确

        More accurate modelling and positioning of components零部件建模和定位更准确

        Collaborative协同

        Create, update and share detailed models quickly and easily快速便捷创建、更新和分享模型细节

        Make informed decisions earlier尽早做出正确决策

        Integration集成:Integrate and interface with your existing software tools与您现有的软件工具实现嵌入、集成和接口功能,通过与CAD建模和CAE分析的无缝和简化集成提升协同性。

Work with 2D or 3D geometry to edit as required or draw from scratch在二维或三维状态下按需求编辑或画草图。

        Import from CAD从CAD软件中导入模型,自由编辑/创建几何模型。

        Intelligent Feature Recognition and Model Healing智能特征识别和模型修复:自动修复和简化过度复杂或质量较差的模型;将轴特征转化成应力集中因子。

        3D Meshing三维网格划分:能对复杂三维模型,比如行星架、差速器壳、轮辐和箱体等进行创建、编辑、修复、简化和自动划分有限元网格。

        Export to CAD导出模型到CAD软件中:从Romax软件中导出模型(单个零部件甚至完整系统)到CAD软件,包含CAD模型结构细节。

        Manufacturing Drawings生成加工图纸:C为后续制造生成二维零部件工程图。

        Model Comparison模型对比:生成包含所有零部件位置参数,相对齿轮箱的位置参数和轴基准参数的详细报告,便于与CAD软件模型对比。

        Gear Data齿轮参数:将齿轮宏观参数从第三方软件工具中导入RomaxDESIGNER软件中,导出用于加工齿轮的参数。

从方案设计到详细设计,CAD FUSION使Romax软件和CAD软件之间的二维和三维数据的转换流程更快速、可靠,且可重复,能加速建模,减少错误,提升模型质量。

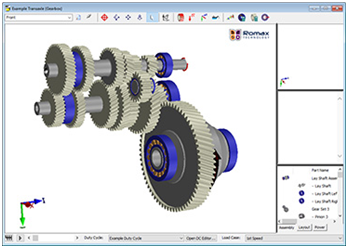

从RomaxDESIGNER软件导出模型到CAD FUSION和其他CAD软件中。

1


二、用户评价

“We modelled inRomaxDESIGNER and could switch easily to CAD FUSION. CAD FUSION was extremely helpful.”

“我们在RomaxDESIGNER软件中创建的模型可方便地导入到CAD FUSION中。CAD FUSION是非常有用的。”

-Technische Universität Darmstadt



 “We are really excited about the 3D CAD meshing features in CAD FUSION. The capabilities are really powerful, and I don’t know of anything else in the market which allows you to tie together CAD and advanced CAE in such an impressive way. Romax really are leading the field.”

“CAD FUSION的三维CAD模型有限元网格划分功能确实让我们非常兴奋。该功能非常强大,在市面上我们还没有发现其他软件能做到CAD软件和高级CAE软件能如此紧密的结合在一起。Romax确实是传动行业的引领者。”

- A major automotive OEM

Import gears, shafts, housings and complex rotating components from 2D or 3D CAD geometry (STEP/IGES and all major CAD packages) into RomaxDESIGNER, RomaxWIND or CONCEPT.

从CAD软件中将齿轮、轴、箱体和复杂旋转零部件二维图或三维模型(STEP/IGES 和所有主流CAD软件格式模型)导入到RomaxDESIGNER、RomaxWIND或CONCEPT中。

-Free Edit/Create Geometry
